BW4 Waterproof Wrist Enclosures

Strap Enclosures

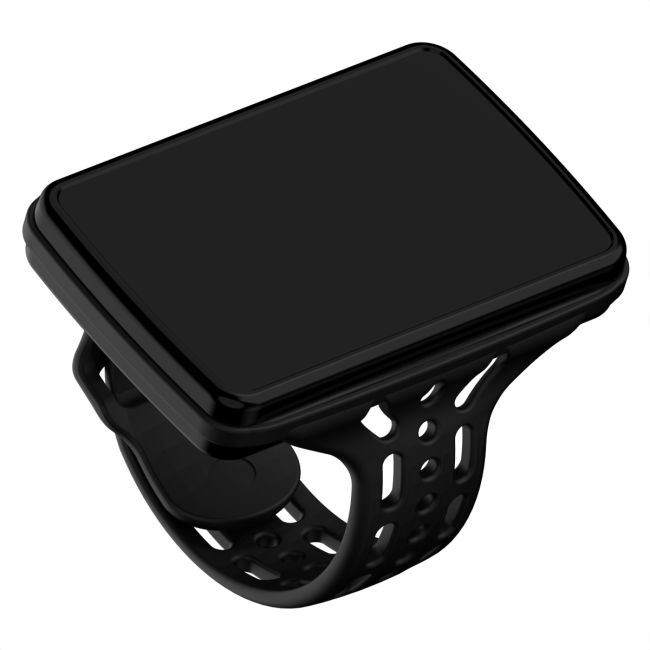

BW6 Waterproof Wrist Enclosures

Be the first to comment this product

- $5.20

In stock

Only %1 left

SKU

BW6

Comments

Write Your Own Comment

How To Get A Quote

PRINTING INFORMATION

DIGITAL PRINTING FEATURES

Full color digital printing
Printing process creates a high quality, scratch resistant image
Ideal for outdoor use, cost efficient enough for all enclosure uses

PAD PRINTING FEATURES

Full color digital printing
Minimum line thickness for artwork is 0.01in

GUIDELINES

A vector based artwork file (preferably in Adobe Illustrator) scaled 1:1
A pantone number for each color used is required for all printing unless using standard black and white
If using a specific font, to preserve its appearance, convert text to outline or "expand" before sending Illustrator file
Lead time for printing orders: 48 hours for 1000 pieces or less
No minimum quantities are required; however, a set-up fee will be applied

REQUIRED FILES (2):

1:1 SCALED VECTOR FILE (PREFERABLY ADOBE ILLUSTRATOR)

PDF FILE OF LOGO PLACEMENT & PANTONE COLORS

GEOMETRY ALTERATION INFORMATION

MACHINING

Machine a wide range of openings
Recess any surface (for labels or membrane switches)
Endless geometric options
Machine internal features: removal or shortening of circuit board bosses or card guides

MACHINING GUIDELINES

Dimension all geometry from the center line
Allow a 0.03" (0.8mm) radius for all inside-modified corners (additional charges will apply for a smaller radius)
Machined recesses can't be more than 80% of an enclosure's wall thickness

An Illustration with dimensions is required to set up machining
Lead time for machining orders: 48 hours for 1000 pieces or less
No minimum quantities are required; however, a set-up fee will be applied

DEPENDING ON THE QUANTITY OF ORDERS & RECESSES MOLDING MAY BE THE BETTER OPTION

We can determine these cases and give you quotes for both options

MOLDING

Most enclosures have custom moldable areas (I-Plates)
We can mold custom features, characters, symbols, openings, raised areas, and recesses in the I-Plate areas
I-Plate areas are noted by clicking on the "User Prints" icon on each of our product pages
I-Plates can be textured and non-textured. Textured I-Plates feel and blend with the rest of the enclosure. Non-textured I-Plates are smooth for labels or membrane switches.
I-Plates have a one time tooling charge and are owned by the customer
Some enclosures internal circuit board mounts can be lengthened or shortened

MOLDING GUIDELINES

Dimension all geometry from the center line
Recesses cannot be more than 60% of an enclosures wall thickness
Space between cutouts must be the thickness of the enclosures wall at minimum
I-Plate areas are the only areas customizable by molding
Lead time for molding orders: 2 weeks
No minimum quantities are required; however, a set-up fee will be applied

MOLDING CAPABILITIES

1- Select Above Product

→

2- Click Load Product Info

→

3- Fill In All Information

→

4- Click Get Quote

Product Details

BW SERIES

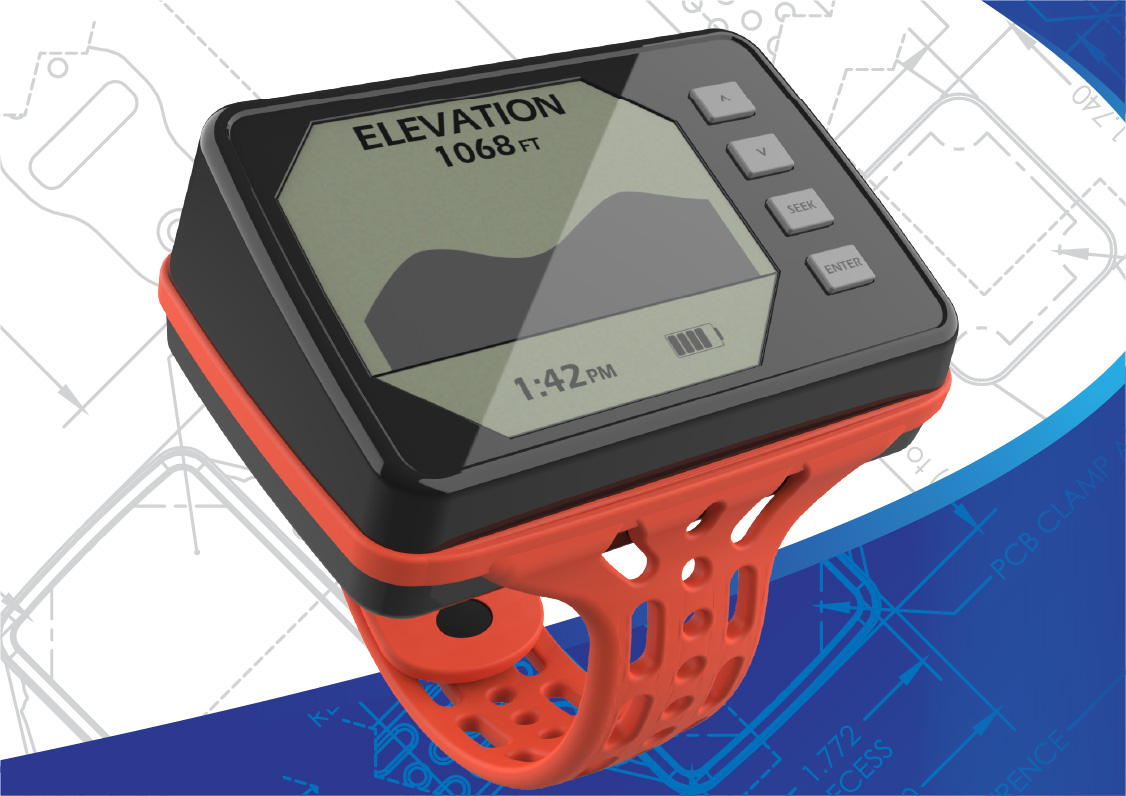

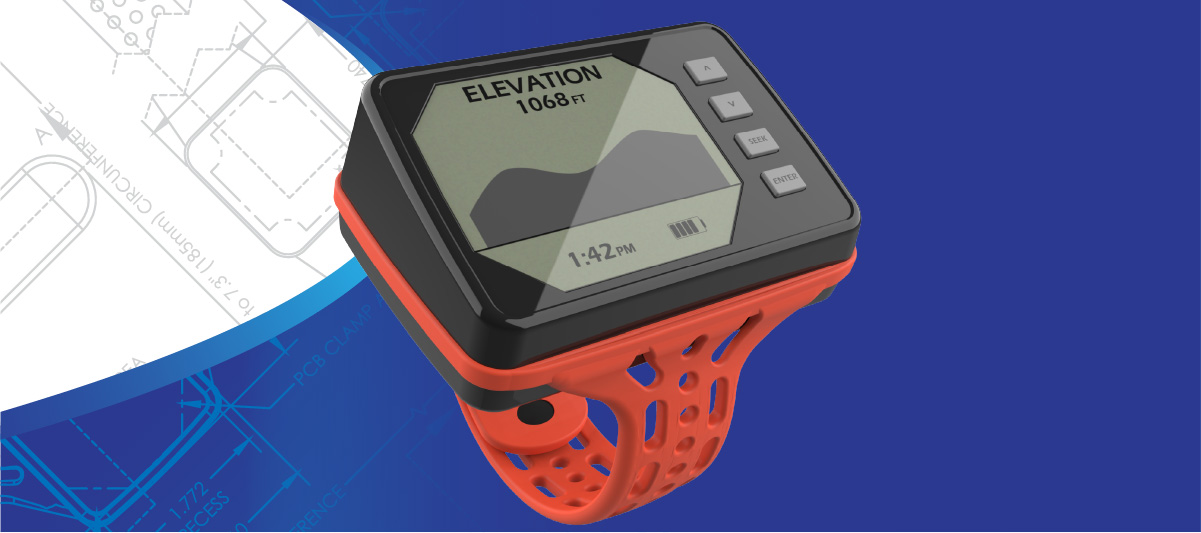

Waterproof Watch Enclosure

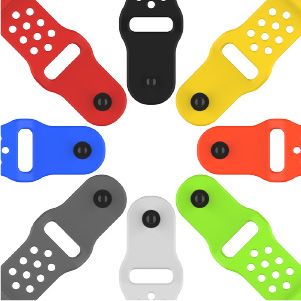

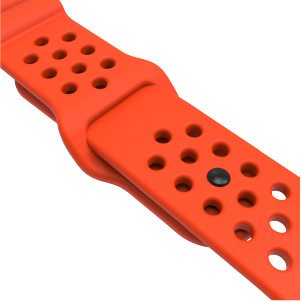

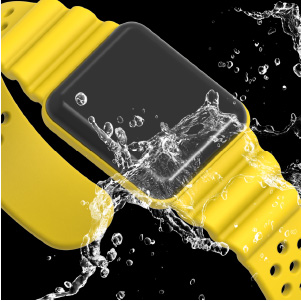

Serpac watch enclosures are made from a durable, impact resistant, polycarbonate and synthetic rubber. They are IP67 dustproof / waterproof and come in a variety of colors. Uses for these are limitless including: fitness tracker, healthcare and heart rate monitor, watch, GPS tracker and location device, or security access point.
