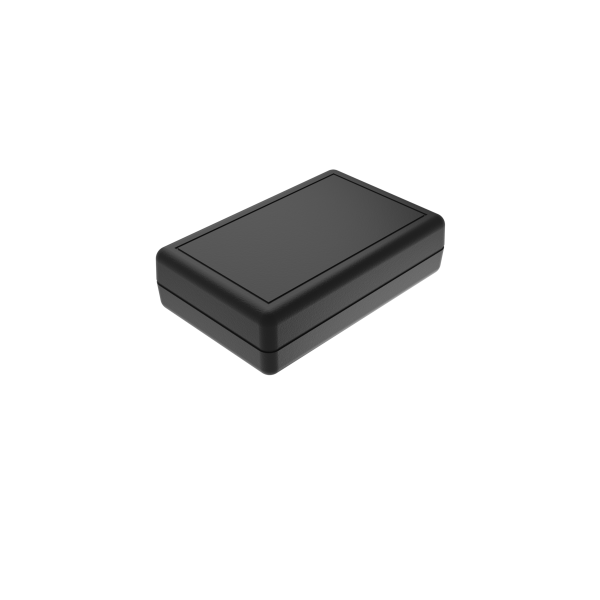

C4 Pocket Enclosure

As low as- $2.15
In stock
Only %1 left
SKU
C4

How To Get A Quote

PRINTING INFORMATION

DIGITAL PRINTING FEATURES

  • Full color digital printing
  • Printing process creates a high quality, scratch resistant image
  • Ideal for outdoor use, cost efficient enough for all enclosure uses

PAD PRINTING FEATURES

  • Full color digital printing
  • Minimum line thickness for artwork is 0.01in
full Printing

GUIDELINES

  • A vector based artwork file (preferably in Adobe Illustrator) scaled 1:1
  • A pantone number for each color used is required for all printing unless using standard black and white
  • If using a specific font, to preserve its appearance, convert text to outline or "expand" before sending Illustrator file
  • Lead time for printing orders: 48 hours for 1000 pieces or less
  • No minimum quantities are required; however, a set-up fee will be applied

REQUIRED FILES (2):

1:1 SCALED VECTOR FILE (PREFERABLY ADOBE ILLUSTRATOR)

full Printing

PDF FILE OF LOGO PLACEMENT & PANTONE COLORS

full Printing

Please email us to get a quote. sales@serpac.com (no larger than 10 MB please).

GEOMETRY ALTERATION INFORMATION

MACHINING

  • Machine a wide range of openings
  • Recess any surface (for labels or membrane switches)
  • Endless geometric options
  • Machine internal features: removal or shortening of circuit board bosses or card guides

MACHINING GUIDELINES

  • Dimension all geometry from the center line
  • Allow a 0.03" (0.8mm) radius for all inside-modified corners (additional charges will apply for a smaller radius)
  • Machined recesses can't be more than 80% of an enclosure's wall thickness
  • An Illustration with dimensions is required to set up machining
  • Lead time for machining orders: 48 hours for 1000 pieces or less
  • No minimum quantities are required; however, a set-up fee will be applied
full Printing

DEPENDING ON THE QUANTITY OF ORDERS & RECESSES MOLDING MAY BE THE BETTER OPTION

We can determine these cases and give you quotes for both options

full Printing

MOLDING

  • Most enclosures have custom moldable areas (I-Plates)
  • We can mold custom features, characters, symbols, openings, raised areas, and recesses in the I-Plate areas
  • I-Plate areas are noted by clicking on the "User Prints" icon on each of our product pages
  • I-Plates can be textured and non-textured. Textured I-Plates feel and blend with the rest of the enclosure. Non-textured I-Plates are smooth for labels or membrane switches.
  • I-Plates have a one time tooling charge and are owned by the customer
  • Some enclosures internal circuit board mounts can be lengthened or shortened
full Printing

MOLDING GUIDELINES

  • Dimension all geometry from the center line
  • Recesses cannot be more than 60% of an enclosures wall thickness
  • Space between cutouts must be the thickness of the enclosures wall at minimum
  • I-Plate areas are the only areas customizable by molding
  • Lead time for molding orders: 2 weeks
  • No minimum quantities are required; however, a set-up fee will be applied

MOLDING CAPABILITIES

full Printing
full Printing
full Printing
full Printing
full Printing
full Printing
full Printing
1- Select Above Product
2- Click Load Product Info
3- Fill In All Information
4- Click Get Quote
Product Details
c details c details c details

C SERIES

Pocket Enclosures

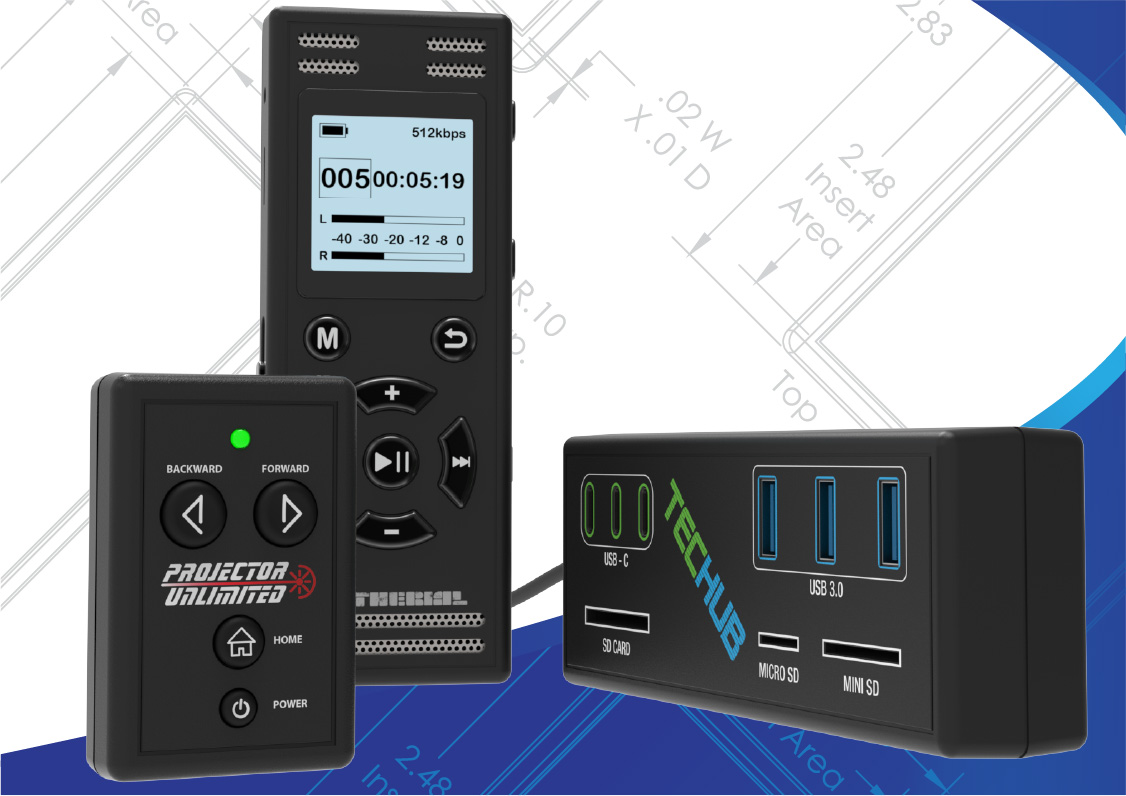

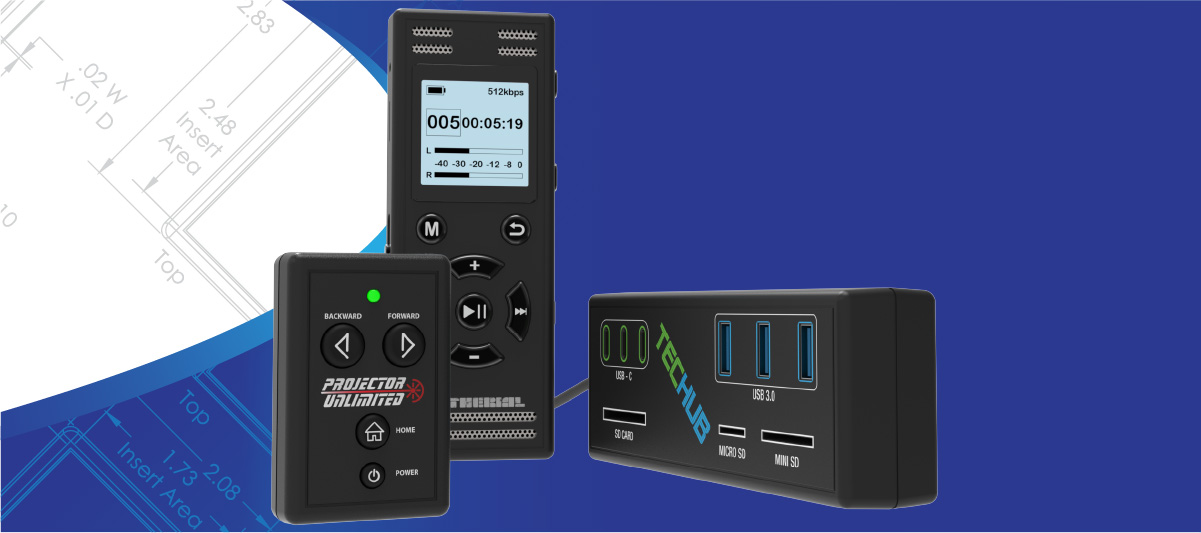

The C Series was made to be a compact and cost-efficient solution for pocket sized electronic enclosures. These two-piece enclosures are assembled with a single central screw which makes it perfect for a quick easy and sturdy assembly. Designed to be lightweight for use as a USB dongle, Bluetooth device, wireless remote controller, charging hub, and whatever indoor office and computer electronic projects.

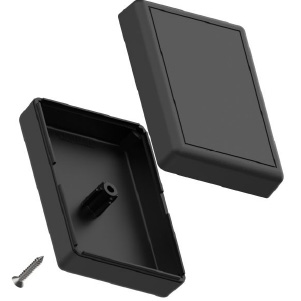

SINGLE SCREW ASSEMBLY

SINGLE SCREW ASSEMBLY

This two-piece enclosure includes a single screw for assemble.

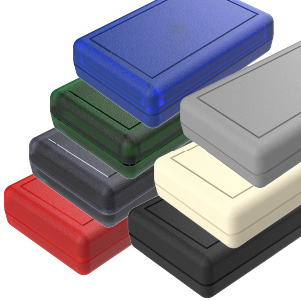

COLOR OPTIONS

COLOR OPTIONS

Nearly all C Series come in seven different color options. The standard black, almond, gray and translucent red, blue, green, and gray.

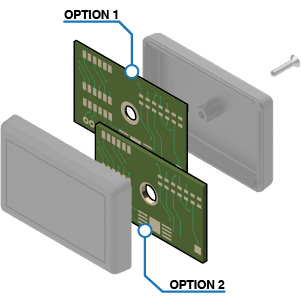

MULTIPLE PCB OPTIONS

MULTIPLE PCB OPTIONS

Each enclosure is designed with a two-step mounting boss to fit a single 0.032” or a single 0.065” printed circuit board.
