I142 GRAY MAIN

I142 Industrial Enclosure

Electronic Enclosure RBF65

RBF65 Electronic Enclosure

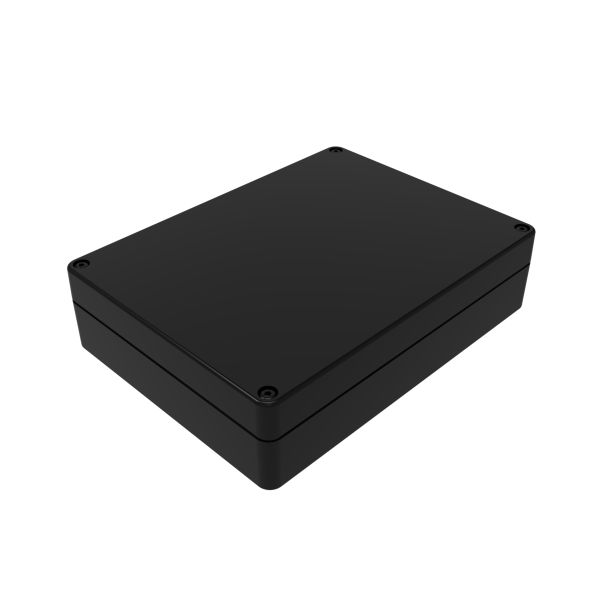

RB65 Electronic Enclosure

As low as- $20.63
In stock
Only %1 left
SKU
RB65
Prop65

How To Get A Quote

PRINTING INFORMATION

DIGITAL PRINTING FEATURES

  • Full color digital printing
  • Printing process creates a high quality, scratch resistant image
  • Ideal for outdoor use, cost efficient enough for all enclosure uses

PAD PRINTING FEATURES

  • Full color digital printing
  • Minimum line thickness for artwork is 0.01in
full Printing

GUIDELINES

  • A vector based artwork file (preferably in Adobe Illustrator) scaled 1:1
  • A pantone number for each color used is required for all printing unless using standard black and white
  • If using a specific font, to preserve its appearance, convert text to outline or "expand" before sending Illustrator file
  • Lead time for printing orders: 48 hours for 1000 pieces or less
  • No minimum quantities are required; however, a set-up fee will be applied

REQUIRED FILES (2):

1:1 SCALED VECTOR FILE (PREFERABLY ADOBE ILLUSTRATOR)

full Printing

PDF FILE OF LOGO PLACEMENT & PANTONE COLORS

full Printing

Please email us to get a quote. sales@serpac.com (no larger than 10 MB please).

GEOMETRY ALTERATION INFORMATION

MACHINING

  • Machine a wide range of openings
  • Recess any surface (for labels or membrane switches)
  • Endless geometric options
  • Machine internal features: removal or shortening of circuit board bosses or card guides

MACHINING GUIDELINES

  • Dimension all geometry from the center line
  • Allow a 0.03" (0.8mm) radius for all inside-modified corners (additional charges will apply for a smaller radius)
  • Machined recesses can't be more than 80% of an enclosure's wall thickness
  • An Illustration with dimensions is required to set up machining
  • Lead time for machining orders: 48 hours for 1000 pieces or less
  • No minimum quantities are required; however, a set-up fee will be applied
full Printing

DEPENDING ON THE QUANTITY OF ORDERS & RECESSES MOLDING MAY BE THE BETTER OPTION

We can determine these cases and give you quotes for both options

full Printing

MOLDING

  • Most enclosures have custom moldable areas (I-Plates)
  • We can mold custom features, characters, symbols, openings, raised areas, and recesses in the I-Plate areas
  • I-Plate areas are noted by clicking on the "User Prints" icon on each of our product pages
  • I-Plates can be textured and non-textured. Textured I-Plates feel and blend with the rest of the enclosure. Non-textured I-Plates are smooth for labels or membrane switches.
  • I-Plates have a one time tooling charge and are owned by the customer
  • Some enclosures internal circuit board mounts can be lengthened or shortened
full Printing

MOLDING GUIDELINES

  • Dimension all geometry from the center line
  • Recesses cannot be more than 60% of an enclosures wall thickness
  • Space between cutouts must be the thickness of the enclosures wall at minimum
  • I-Plate areas are the only areas customizable by molding
  • Lead time for molding orders: 2 weeks
  • No minimum quantities are required; however, a set-up fee will be applied

MOLDING CAPABILITIES

full Printing
full Printing
full Printing
full Printing
full Printing
full Printing
full Printing
1- Select Above Product
2- Click Load Product Info
3- Fill In All Information
4- Click Get Quote
Product Details
s details s details s details

RB SERIES

Small Industrial Enclosures

The RB series is a plastic electronic enclosure box made from a lightweight, UV stable, and impact resistant polycarbonate. Stainless steel screws and threaded metal inserts ensure this enclosure will last in industrial and outdoor environments. All RBs are equipped with a dust and waterproof (IP67) perimeter seal. As with all of our electronic enclosures, it has built-in PCB mounting options, comes in a range of colors and sizes, and is ready for your DIY and OEM electrical project.

IP67 Waterproof

IP67 Waterproof

Includes a preinstalled seal making it IP67 waterproof and dustproof.

NEMA 4X

NEMA 4X

Suitable for indoor and outdoor weather conditions.

FLAMMABILITY V0 Fastening

FLAMMABILITY V0

Keep the internal components safe with our fire-resistant polycarbonate.

Standard

IP67 Waterproof

All RB enclosures include a pre-installed waterproof and dustproof IP67 seal.

Smooth Recess

Industrial Use

This enclosure is made from an impact resistant, weatherproof, and UV stable polycarbonate. Keep electronics safe for indoor and outdoor use.

Smooth Recess Sloped

Wall Mounting

Easily mount your enclosure to a wall or surface by using the through holes located under the lid.

Bottom Fastening

PCB Mounting

All RB enclosures include screws for mounting your PCB on the interior in bosses.

Top Fastening

Made to Last

These enclosures include rust resistant stainless-steel screws and pre-installed threaded metal inserts.
