RBF22 Electronic Enclosure

RBF22 Electronic Enclosure

RB65 Electronic Enclosure

RB65 Electronic Enclosure

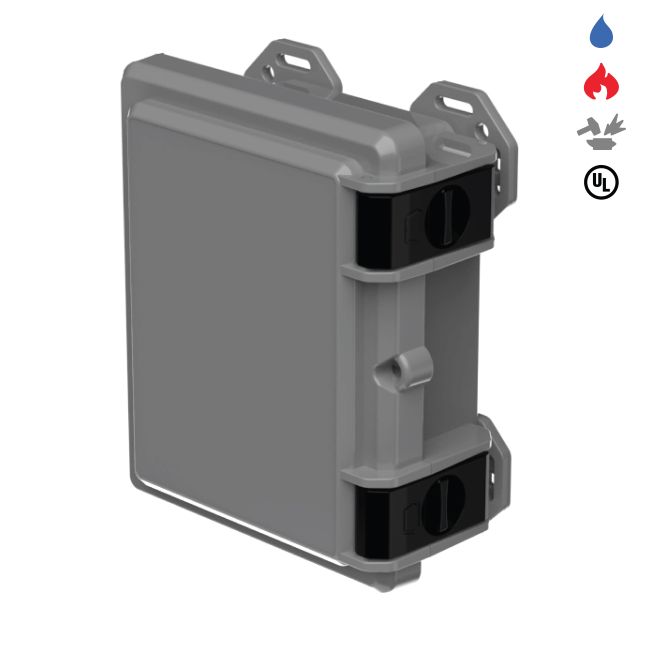

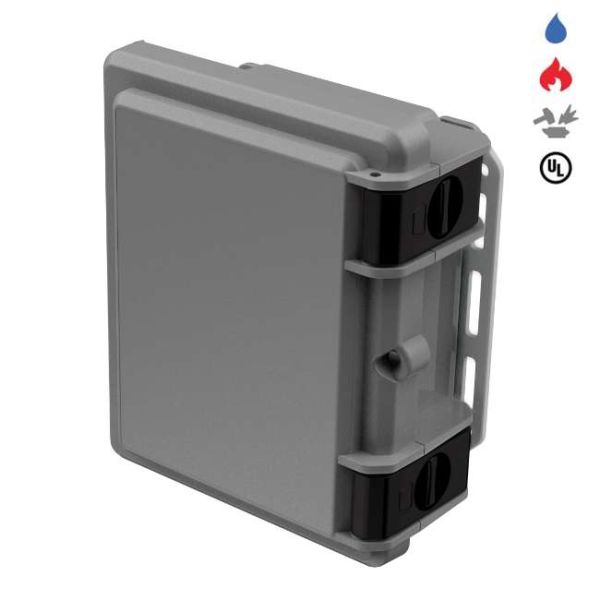

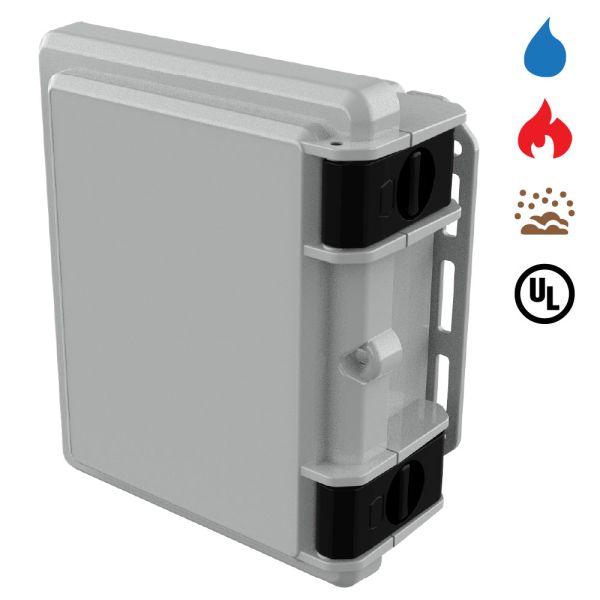

I142 Industrial Enclosure

As low as- $56.45
In stock
Only %1 left
SKU
I142
Prop65

9.71 x 8.23 x 4.00 In

YOU MIGHT WANT

  1. I622HL Industrial Enclosure
    I622 Industrial Enclosure
    As low as- $186.53 As low as- $93.27
  2. I142 GRAY MAIN
    I142 Industrial Enclosure
    As low as- $56.45 As low as- $28.23
  3. I602HL Industrial Enclosure

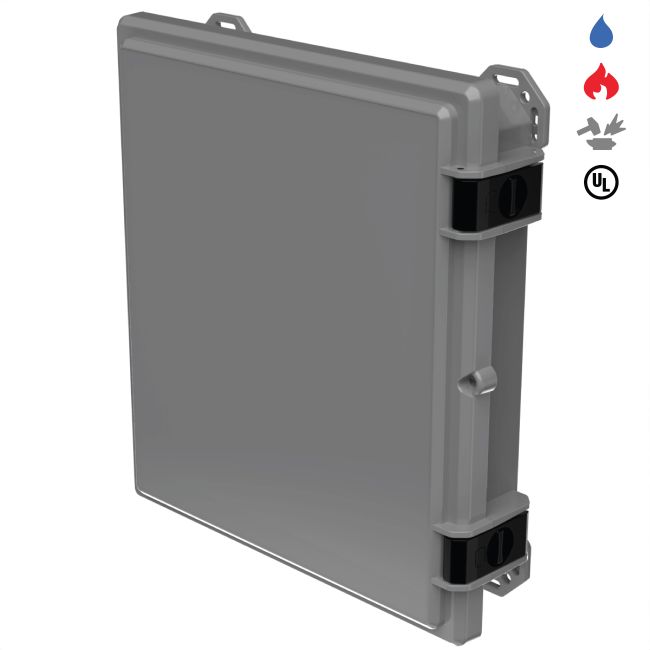

    I602 Industrial Enclosure
    As low as- $181.63 As low as- $90.81
  4. I632HL Industrial Enclosure

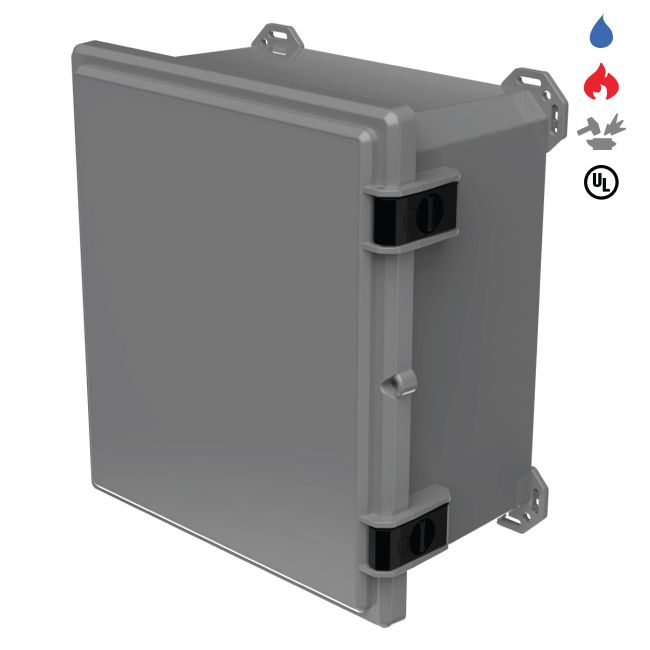

    I632 Industrial Enclosure
    As low as- $193.90 As low as- $96.95
  5. I652HL Industrial Enclosure
    I652 Industrial Enclosure
    As low as- $206.10 As low as- $103.05

How To Get A Quote

PRINTING INFORMATION

DIGITAL PRINTING FEATURES

  • Full color digital printing
  • Printing process creates a high quality, scratch resistant image
  • Ideal for outdoor use, cost efficient enough for all enclosure uses

PAD PRINTING FEATURES

  • Full color digital printing
  • Minimum line thickness for artwork is 0.01in
full Printing

GUIDELINES

  • A vector based artwork file (preferably in Adobe Illustrator) scaled 1:1
  • A pantone number for each color used is required for all printing unless using standard black and white
  • If using a specific font, to preserve its appearance, convert text to outline or "expand" before sending Illustrator file
  • Lead time for printing orders: 48 hours for 1000 pieces or less
  • No minimum quantities are required; however, a set-up fee will be applied

REQUIRED FILES (2):

1:1 SCALED VECTOR FILE (PREFERABLY ADOBE ILLUSTRATOR)

full Printing

PDF FILE OF LOGO PLACEMENT & PANTONE COLORS

full Printing

Please email us to get a quote. sales@serpac.com (no larger than 10 MB please).

GEOMETRY ALTERATION INFORMATION

MACHINING

  • Machine a wide range of openings
  • Recess any surface (for labels or membrane switches)
  • Endless geometric options
  • Machine internal features: removal or shortening of circuit board bosses or card guides

MACHINING GUIDELINES

  • Dimension all geometry from the center line
  • Allow a 0.03" (0.8mm) radius for all inside-modified corners (additional charges will apply for a smaller radius)
  • Machined recesses can't be more than 80% of an enclosure's wall thickness
  • An Illustration with dimensions is required to set up machining
  • Lead time for machining orders: 48 hours for 1000 pieces or less
  • No minimum quantities are required; however, a set-up fee will be applied
full Printing

DEPENDING ON THE QUANTITY OF ORDERS & RECESSES MOLDING MAY BE THE BETTER OPTION

We can determine these cases and give you quotes for both options

full Printing

MOLDING

  • Most enclosures have custom moldable areas (I-Plates)
  • We can mold custom features, characters, symbols, openings, raised areas, and recesses in the I-Plate areas
  • I-Plate areas are noted by clicking on the "User Prints" icon on each of our product pages
  • I-Plates can be textured and non-textured. Textured I-Plates feel and blend with the rest of the enclosure. Non-textured I-Plates are smooth for labels or membrane switches.
  • I-Plates have a one time tooling charge and are owned by the customer
  • Some enclosures internal circuit board mounts can be lengthened or shortened
full Printing

MOLDING GUIDELINES

  • Dimension all geometry from the center line
  • Recesses cannot be more than 60% of an enclosures wall thickness
  • Space between cutouts must be the thickness of the enclosures wall at minimum
  • I-Plate areas are the only areas customizable by molding
  • Lead time for molding orders: 2 weeks
  • No minimum quantities are required; however, a set-up fee will be applied

MOLDING CAPABILITIES

full Printing
full Printing
full Printing
full Printing
full Printing
full Printing
full Printing
1- Select Above Product
2- Click Load Product Info
3- Fill In All Information
4- Click Get Quote
Product Details
i details i details i details

I SERIES

Industrial Enclosures

The I Series is our answer to medium and large sized industrial electronic enclosures. These DIY enclosures are UL 508A certified, IP67 waterproof / dustproof, NEMA 4X, and have a flammability V0 rating. These weatherproof and impact resistant project boxes were built for indoor and outdoor use. Includes top and bottom enclosure, mounting brackets with screws for attaching to the enclosure, and a pre-installed waterproof seal. Great for junction boxes, AED and medical equipment storage, mounted control panels, and so much more.

UL 508A Certified

UL 508A Certified

Certified for industrial control panel component use in the United States.

IP67 Waterproof

IP67 Waterproof

Includes a preinstalled seal making it IP67 waterproof and dustproof.

NEMA 4X

NEMA 4X

Suitable for indoor and outdoor weather conditions.

FLAMMABILITY V0 Fastening

FLAMMABILITY UL V0

Keep the internal components safe with our fire-resistant polycarbonate.

LATCH ACCESS DOOR WITH HINGES

LATCH ACCESS DOOR WITH HINGES

A hinged door with two twist to lock latches. Door has a padlock hole for added security.

SCREW ACCESS DOOR WITH HINGES

SCREW ACCESS DOOR WITH HINGES

Hinged door with two Philips head screw access. The Door has a padlock hole for added security.

SCREW ACCESS PANEL

SCREW ACCESS PANEL

An access panel attached by four Phillips head screws.

WALL MOUNT INCLUDED

WALL MOUNT INCLUDED

All I-Series models include mounting brackets and screws for attaching it to the enclosure.

Accessories you might need
  1. 1355K

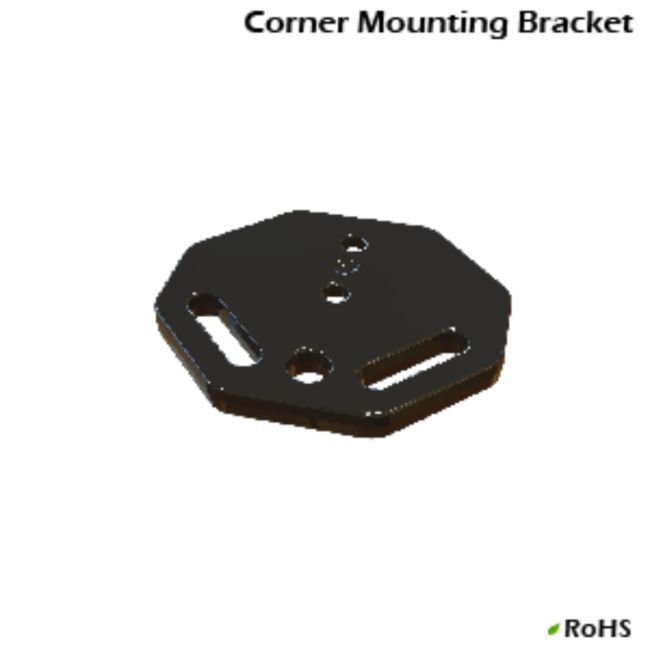

    Corner Mounting Bracket
    As low as- $7.36
  2. 7100HP - I152 Hinged Plastic Panel Kit - 7100HP - Polycarbonate
    I152 Hinged Plastic Panel Kit - 7100HP - Polycarbonate
    $17.62
  3. 7100B - I152 Series Bottom Panel Kit - 7100B - Aluminum
    I152 Series Bottom Panel Kit - 7100B - Aluminum
    $28.63 As low as- $14.31
  4. 7100T - I152 Series Top Panel Kit - 7100T - Aluminum
    I152 Series Top Panel Kit - 7100T - Aluminum
    $28.63 As low as- $14.31
  5. 7100TH - I152 Series Top Hinged Panel Kit - 7100TH - Aluminum
    I152 Series Top Hinged Panel Kit - 7100TH - Aluminum
    $28.63 As low as- $14.31
